Physical Characteristics |
Dimensions | Straight Shooter: | 7.49 (L) x 3.22 (W) x 1.78 (D)”/ 190.4 (L) x 81.9 (W) x 45.2 (D)mm At grip: 2.4 (W) x 1.35 (D)” 60.9 (W) x 34.2 (D)mm |
Rotating Turret: | 8.37 (L) x 3.22 (W) x 1.57 (D)”/ 212.6 (L) x 81.9 (W) x 40 (D)mm At grip: 2.4 (W) x 1.35 (D)” 60.9 (W) x 34.2 (D)mm |

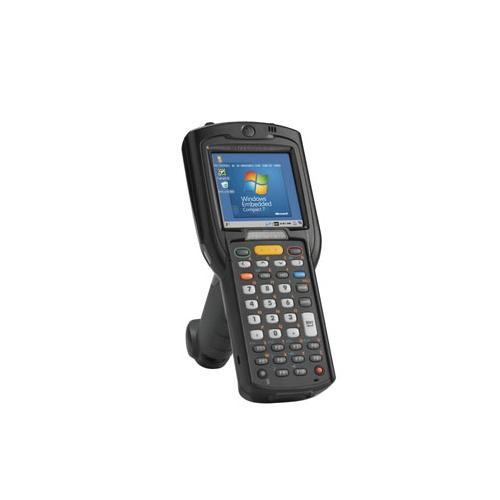

Gun: | 7.59 (L) x 3.18 (W) x 6.5 (D)”/ 192.7 (L) x 80.8 (W) x 166 (D)mm |
Weight (including strap,stylus, and battery) | Straight Shooter: | 12.88oz./ 365g |
Rotating Turret: | 13.13oz./ 372g (with standard battery) |
Gun: | 18.0oz./ 509g (with extended battery) |
Display | 3” color (TFT) (320 x 320) display |
Touchpanel | Chemically strengthened glass, resistive touch |
Backlight | LED backlight |
Keypad Options | 28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric |
Expansion Slot | User accessible Micro SD slot; (supports up to 32GB microSDHC) |
Notifications | LEDs and audio |
Audio | Speaker, microphone and headset connector (2.5mm jack) |
Performance Characteristics |
CPU | Standard: Dual core 800MHz OMAP4 Processor |
Premium: Dual core 1GHz OMAP4 processor |
Operating System | Choice of Windows Embedded |
Compact 7.0 (Standard or Premium) |
Android 4.1 (Premium) |
Memory | Standard: 512MB RAM/ 2GB Flash |
Premium: 1GB RAM/ 4GB Flash |
Power | PowerPrecision Li-Ion batteries Two options: High Capacity 4800mAh or Standard Capacity 2740mAh (not available on gun form factor) |
User Environment |
Drop Specification | Multiple 4’/ 1.2m drops to concrete across the operating temperature range, multiple 5’/ 1.5m drops to concrete at ambient temperature 73°F/ 23°C; meets and exceeds MIL -STD 810G |
Tumble Specification | 500 1.64’/ 0.5m tumbles (1,000 drops) at room temperature per IE C 68-2-32 tumble specifications |
Operating Temperature | -4~122°F/ -20~50°C |
Storage Temperature | -40~158°F/ -40~70°C |
Battery Charging Temperature | 32~104°F/ 0~40°C |
Sealing | IP 54 per IE C specification |
Humidity | 10%~95% non-condensing |
ESD | EN61000-4-2 |
± 20kV Air discharge |
±10kV direct discharge |
±10kV indirect discharge |
Data Capture |
Scanning | 1D Laser1 : SE965 Standard Range with Adaptive Scanning (all models) |
1D/2D Imager: SE4750-SR (Straight Shooter and Gun models only) |
Interactive Sensor Technology (ist) |
Motion-sensor | CE7.0/Premium model: 3-axis accelerometer that enables motionsensing applications on dynamic screen orientation, power management and free-fall detects; |
Android: 3-axis accelerometer that detects screen rotation |
Voice And Audio | PTT (client included) |
High-quality speakerphone |
Wireless (Bluetooth) and wired headset support |
PTT will support headset and speakerphone mode. |
Network Communications | I/O: USB 1.1 Full Speed Host/Client or RS232 |
Applications |
Included Applications: | Asset Tracker Lite |
Wireless Lan Voice And data Communications |
Radio | IEEE ® 802.11a/b/g/n |
Security | Security Modes: Legacy3, WPA and WPA2 or (Personal or Enterprise); 802.1X |
Encryption: WEP 40/WAP104, TKIP and AES |
Authentication: TL S; TTL S (CHAP3, MSCHAP, MSCHAPv2, PAP or MD53); PE AP (TLS3, MSCHAPv2, GTC); LEAP; FAST (TLS3, MSCHAPv2, GTC) |
Other: Wi-Fi CCXv4 certified; supports IP v6; FIP S 140-2 certified (Android), Q4-2014 (WinCE) |
Antenna | Internal antenna w/diversity |
Data Rates | 802.11a/g: up to 54Mbps |
802.11b: up to 11Mbps |
802.11n: up to 65Mbps (72 Mbps w/SGI) |
Operating Channels | Chan 36-165 (5180~5825MHz), Chan 1-13 (2412~2472MHz); Actual operating channels/ frequencies depend on regulatory rules and certification agency |
Wireless Pan Data and Voice Communications |
Bluetooth® | Class II, v2.1 with Enhanced Data Rate (EDR); integrated antenna |
Peripherals And Accessories | Single-slot USB/RS232 charging cradle with spare battery well |
Four-slot charge only cradle |
Four slot Ethernet cradle |
Four-slot battery charger |
Universal battery charger adapter |
Warranty | Subjected to the terms of Zebra’s hardware warranty statement, the MC3200 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. |
